CHEMICAL TRANSFER HOSES

RUBBER COVERED POLYTETRAFLUOROETHYLENE (PTFE)

Chemical transfer hoses are typically rubber covered polytetrafluoroethylene or PTFE hoses. Chemical hoses (also referred to as chemical transfer hoses) are used to move chemicals from one location to another. These hoses are manufactured from materials that are highly chemical resistant. Rubber covered polytetrafluoroethylene or PTFE hoses are used in applications such as transferring acids, solvents, and petroleum products to or from storage containers in industrial plants and are also used for spraying pesticides, fertilizers, and paint. Bulk chemical hoses can be cut to the desired length and compatible chemical resistant hose fittings(Coupling alloy and gasket must be compatible with chemical being transferred) can be added to the ends of the hoses to create custom hose assemblies. Chemical hoses are FDA approved per 21CFR177.1550, US Phamacopeia Class VI, 3-A Sanitary Standard 62-01.

Typical applications for chemical transfer hoses include:

  • Pharmaceutical processing
  • Sensitive product transfer
  • Biopharmaceutical hose applications
  • Petroleum transfer
  • Spraying pesticides, fertilizers and paint
  • Load cells
  • Skid transfer
  • CIP and SIP applications
  • Vessel and tank transfer
  • Semiconductor component processing
  • Semiconductor wafer carriers and piping systems

Other Applications for Chemical/Rubber Covered PTFE Hoses:

  • Steam applications
  • Gas applications
  • Multi-purpose applications
  • Hydrocarbon drain applications
  • Anhydrous ammonia applications
  • And more

Chemical Transfer Hoses & Assemblies from McGill Hose:

AFLEX hose logo
photo of AFLEX Corroline+ Chemical Hose

AFLEX Corroline+ Hose Assemblies

Corroline+ is a smoothbore, flexible, fireproof, antistatic hose that can accommodate all your mechanical and process fluid needs, and is more advanced than any other hose product available on the market today. Corroline+; your wish list turned into reality.
Corroline Plus features:
  1. Smoothbore PTFE hose
  2. Highly Flexible
  3. Fireproof rubber cover
  4. Kink proof
  5. Antistatic rubber cover
  6. Natural and Anti Static liner
  7. Lined and non-lined fittings
  8. Self-assembly
  9. One hose to cover the majority of applications
  10. Full certification package
AFLEX hose logo

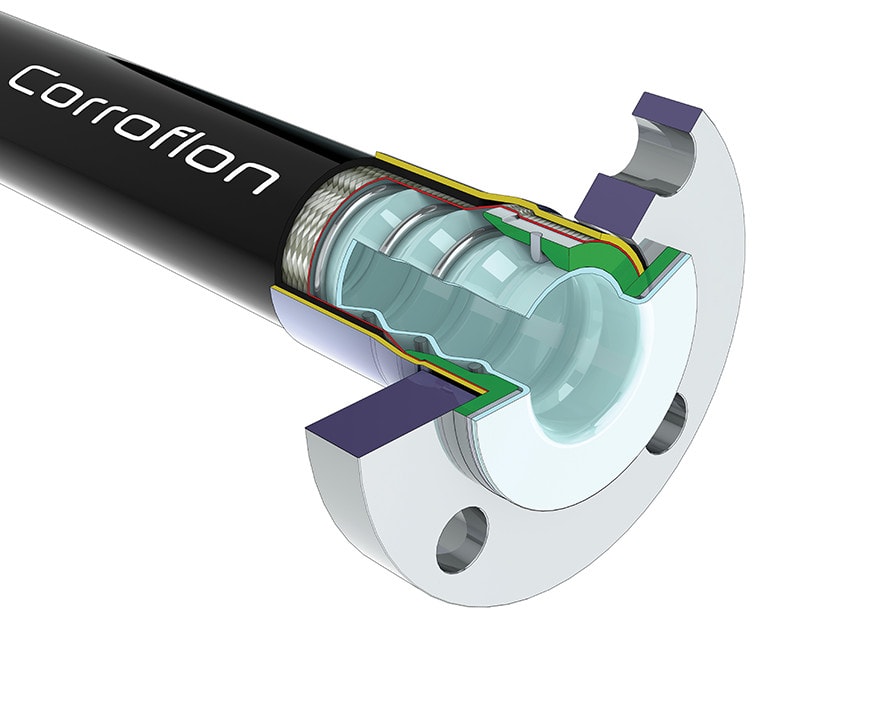

Corroflon PTFE Hose for chemical transfer application

AFLEX Corroflon Hose Assemblies

Corroflon PTFE hose for chemical and process fluid transfer is very tough, fully kink resistant and the shallow convoluted PTFE liner tube delivers exceptional flexibility. Corroflon is the only PTFE lined convoluted hose on the market to be fully kink and usable at vacuum at high pressures and temperatures. Corroflon hose sets the standard for fluoropolymer hose designs which have a very flexible convoluted liner. The PTFE liner in Corroflon has shallow convolutions which minimize the restriction in flow rates, and a reinforcement wire in the external convolutions provides full kink resistance and is usable at vacuum. Like all the other Aflex Hose products, Corroflon is an excellent chemical suction discharge hose for process fluids transfer. Corroflon will give better cleanability and drainability than any other convoluted PTFE hose on the market.
Corroflon features:
  1. Smoothbore PTFE hose
  2. Highly Flexible
  3. Fireproof rubber cover
  4. Kink proof
  5. Antistatic rubber cover
  6. Natural and Anti Static liner
  7. Lined and non-lined fittings
  8. Self-assembly
  9. One hose to cover the majority of applications
  10. Full certification package
logo for Continental ContiTech hose products
photo of ContiTech Hi-Per® chemical transfer hose

ContiTech Hi-Per®

ContiTech’s Hi-Per® chemical hose is lined with high abrasion resistant and heat resistant FEP that enables it to handle a large range of fluids and materials in a wide variety of demanding applications.

Applications:

A premium hose which is FEP lined to handle a broad spectrum of fluids and materials in a wide variety of applications.

Specifications:
  • Construction Tube: FEP has FDA/USDA compliant materials
  • Cover: Blue EPDM synthetic rubber with bright orange spiral transfer tape (wrapped impression)
  • Reinforcement: Spiral-plied synthetic fabric with double wire helix
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications.
  • Non Stock / Sizes: Order in increments of 100’ for 1/2”–2”Order in increments of 60’ for 21⁄2” and larger sizes
  • Temperature Range: -40°F to 300°F (-40°C to 149°C)
  • Order Codes: 546-256
  • Packaging: Custom lengths available (minimum 5’)
logo for Continental ContiTech hose products

ContiTech Hi-Per®

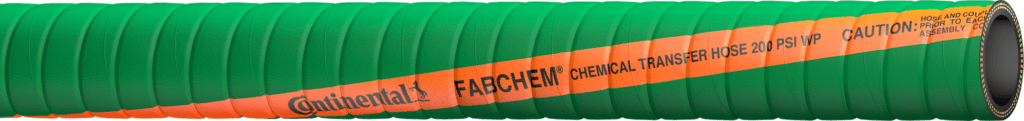

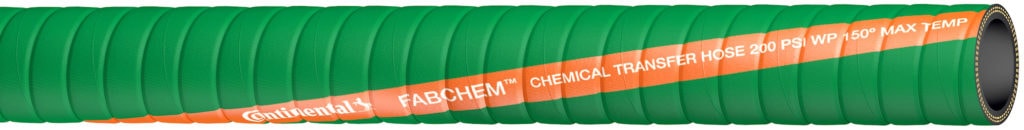

Continental FABCHEM® chemical hose is a durable hose that enables it to handle a large range of fluids and materials in a wide variety of demanding applications.

Applications

An improvement to our chemical hose line. Handles majority of common industrial chemicals in pressure, gravity flow & suction service

Specifications

  •  Construction Tube: Pliosyn™ ultra-high molecular weight polyethylene (UHMWPE)
  •  Cover: EPDM Synthetic Rubber (wrapped impression)
  •  Reinforcement: Spiral-plied Synthetic Fabric with double wire hel
  •  Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications.
  •  Non Stock / Sizes: For special production run minimum requirements, see Appendix D.
  •  Temperature Range: -40°F to 212°F (-40°C to 100°C)
  •  Order Codes: 546-065 (Green), 546-533 (Purple), 546-555 (Blue), 546-716 (ARC)
  •  Packaging: 100’ exact length, coiled, polywrapped
