Continental Contitech Fabchem® Chemical Transfer Hose

Most Versatile Chemical Hose on the Market

Continental’s Fabchem® 200 PSI chemical transfer hose features a Pliosyn™ (UHMWPE) ultra-high molecular weight polyethylene tube and EPDM cover. This is the most versatile chemical transfer hose available and has an A rating for almost all chemicals.

Fabchem® Applications

Handles majority of all common industrial chemicals in pressure, gravity flow and suction service.

Features

  • Excellent chemical resistance: Handles majority of most industrial chemicals
  • Oil resistant
  • Grease resistant
  • Flexible
  • Lightweight
  • Handles pressure

Specifications

  • Construction Tube: Pliosyn™ ultra-high molecular weight polyethylene (UHMWPE). Special UHMWPE cross-linked polyethylene tube reinforced with plied cord, steel wire helix. Green corrugated abrasion resistant cover.
  • Cover: Green EPDM Synthetic Rubber (wrapped impression), corrugated (wrapped impression)
  • Reinforcement: Spiral-plied Synthetic Fabric with double wire helix
  • Temperature Range: -40°F to 212°F (-40°C to 100°C)
  • Manufacturer: Continental Contitech (formerly Goodyear)
  • Couplings: Continental Insta-Lock™, Campbell ChemJoint™
CONTACT OUR CHEMICAL HOSE EXPERTS

Branding

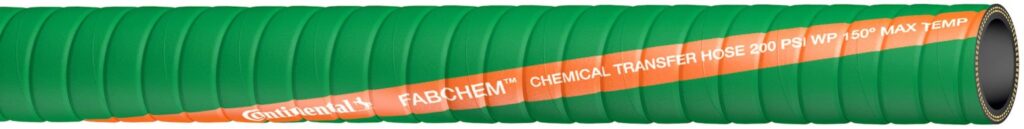

Continental FabchemTM Chemical Transfer Hose, 200 PSI WP
Continental FabchemTM – C (Conductive Logo) Chemical Transfer Hose, 200 PSI WP

FABCHEM Product Specs

Order Codes: 546-065 (Green), 546-533 (Purple), 546-555 (Blue)
ID (in) ID (mm) OD (in) OD (mm)
Length (ft) Color Bend Radius (in.) Bend Radius (mm) Vacuum HG (in.) Vacuum HG (mm) WP (PSI) WP (MPa) Weight (lbs/ft) Weight (kg/m) Part Number
1/2 12.70 0.90 22.80
100 Green 3.00 76.00 29 737 200 1.38 0.30 0.45 20018477
3/4 19.10 1.19 30.10
100 Green 3.50 89.00 29 737 200 1.38 0.464 0.66 20018478
1 25.40 1.44 36.50
100 Green 4.00 102.00 29 737 200 1.38 0.58 0.86 20018481
1-1/4 31.80 1.69 42.90
100 Green 4.50 102.00 29 737 200 1.38 0.69 1.03 20018485
1-1/2 38.10 1.94 49.20
100 Green 5.00 127.00 29 737 200 1.38 0.81 1.20 20018488
2 50.80 2.50 63.50
100 Green 6.00 152.00 29 737 200 1.38 1.17 1.74 20018493
2-1/2 63.50 3.09 78.60
100 Green 7.50 203.00 29 737 200 1.38 1.76 2.61 20018496
3 76.20 3.60 91.30
100 Green 9.00 229.00 29 737 200 1.38 2.09 3.11 20018498
4 101.60 4.60 117.00
100 Green 10.00 254.00 29 737 200 1.38 2.75 4.09 20018502


FABCHEM-C Product Specs

Order Codes: 546-498
ID (in) ID (mm) OD (in) OD (mm)
Length (ft) Color Bend Radius (in.) Bend Radius (mm) Vacuum HG (in.) Vacuum HG (mm) WP (PSI) WP (MPa) Weight (lbs/ft) Weight (kg/m) Part Number
1 25.40 1.48 37.70
100 Black 4.00 102.00 29 737 200 1.38 0.60 0.89 20936107
400 Black 4.00 102.00 29 737 200 1.38 0.60 0.89 20936107
1-1/4 31.75 1.74 44.09
400 Black 4.50 114.00 29 737 200 1.38 0.72 1.07 21102379
2 50.80 2.55 64.70
100 Black 6.00 152.00 29 737 200 1.38 1.20 1.85 20936141
2-1/2 63.50 3.14 79.80
400 Black 8.00 203.00 29 737 200 1.38 1.80 2.68 21055223
3 76.20 3.64 92.50
100 Black 9.00 229.00 29 737 200 1.38 2.14 3.02 20936142
