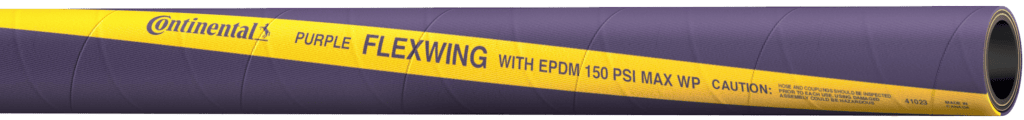

Continental Purple FLEXWING® Chemical Transfer Hose

Versatile hose developed to handle a wide range of chemicals, acids and alcohols in both suction and discharge services.

Continental Purple FLEXWING® Applications

Purple Flexwing is a versatile hose developed to handle a wide range of chemicals, acids and alcohols in both suction and discharge services.

Features

  • Construction Tube:

    EPDM Synthetic Rubber

  • Cover:

    EPDM Synthetic Rubber (Wrapped Impression)

  • Reinforcement:

    Spiral-plied Synthetic Fabric with Double Wire Hel

  • Temperature Range:

    -40°F to 221°F (-40°C to 105°C)

  • Order Codes: 546-805

  • Packaging:

    100ft, Coiled & Polywrapped
CONTACT OUR CHEMICAL HOSE EXPERTS

Branding

PURPLE FLEXWING®

Purple Flexwing Product Specs

ID
(in)		ID
(mm)		OD
(in)		OD
(mm)
Length
(ft)		ColorBend Radius
(in.)		Bend Radius
(mm)		Vacuum HG
(in.)		Vacuum HG
(mm)		WP
(PSI)		WP
(MPa)		Weight
(lbs/ft)		Weight
(kg/m)		Part Number
125.401.4536.70
400Purple3.5089.00297371501.030.430.6520896422
1-1/431.801.7945.40
100Purple4.00102.00297371501.030.841.2520564784
1-1/238.102.0251.30
100Purple4.00102.00297371501.030.951.4120018743
250.802.5364.30
100Purple5.00127.00297371501.031.161.7320018749
376.203.5890.90
100Purple7.00178.00297371501.032.002.9820018750
4101.604.69119.10
100Purple10.00254.00297371501.033.034.5120018751
6152.406.81172.90
100Purple30.00762.00297371501.035.838.6820108988
