Liquid Cooling Quick Disconnects & Hose Assemblies
Danfoss Hansen FD83 flat-face quick disconnects, EPDM coolant hose, DK-LOK fittings. In stock and custom-fabricated for CDU, manifold, and direct-to-chip cooling loops.
Hot-swap ready. Zero downtime.
Where These Connections Live
Everything between the CDU and the cold plate is where McGill's rack-level products operate. On the secondary side of the CDU, through the rack manifold, and out to the cold plates on the servers (the technology cooling system, or TCS, loop).
One leaking quick disconnect can take a rack offline. Flat-face, no-spill couplings keep coolant off the electronics during connects and disconnects. ASHRAE TC 9.9 calls for dry-break couplings on TCS connections, and both the Danfoss FD83 and UQD comply.

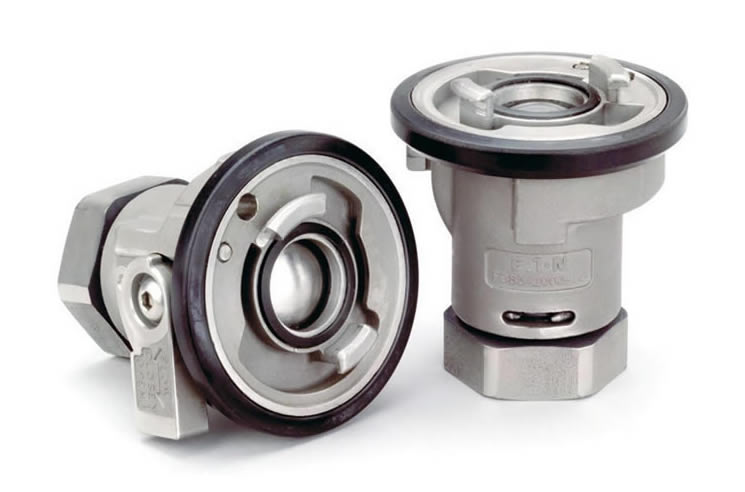

Danfoss Hansen FD83 Quick Disconnects
- Flat-face, double shut-off, with a lever interlock for minimal spillage at disconnect
- End options: ORB, NPT, BSPP, Tri-Clamp, in stainless construction
- Color IDs, caps, and inserts available for supply and return identification
- Hot-swap a CDU or rack manifold without draining the system

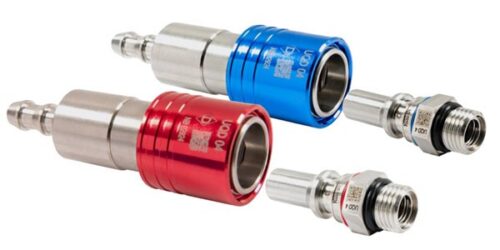

Danfoss UQD (Universal Quick Disconnect)
- High-flow, no-spill design built for in-rack applications
- Blue body for supply, red body for return, for instant visual ID
- Tool-free connect and disconnect with zero fluid loss

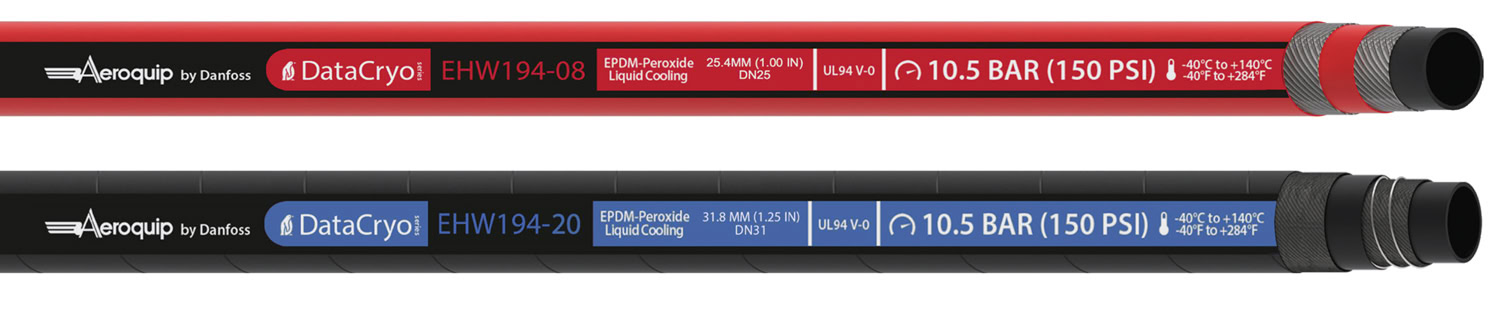

EPDM Coolant Hose
- DataCryo EHW194: peroxide-cured, so nothing leaches into the coolant.
- Rated 150 PSI, -40F to +284F, compatible with PG25 glycol and water.
- Kink-resistant for tight rack routing, available 1/4" to 2" ID in stock.
- Works with push-on and barbed stems plus Oetiker ear clamps (also in stock)
- UL 94V-0 fire rating (exceeds the ASHRAE V-1 minimum)
Request a Quote
Looking for FD83 Couplings, coolant hose, or a complete rack-level assembly? Tell us what you need and we'll follow up fast.
Prefer to talk? Call (413)525-3977
